Working principle

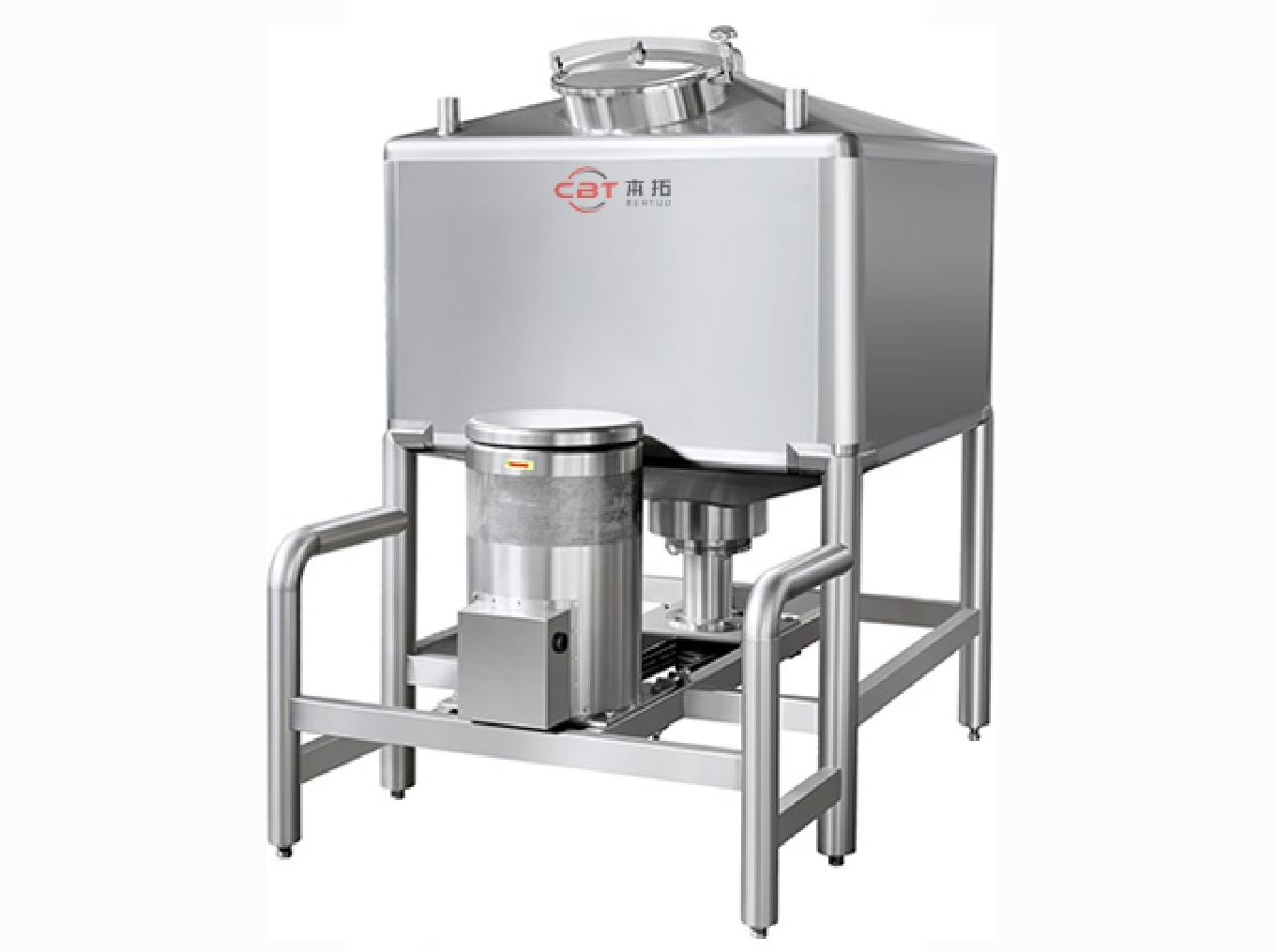

The working principle of the square high-shear emulsifying tank is that under the action of centrifugal force generated by the high-speed and strongly rotating rotor of the emulsifying head, the materials are simultaneously subjected to centrifugal extrusion, impact and other forces, so that the materials are dispersed, mixed and emulsified from the narrow and precise gap between the rotors. Emulsifying tank structure humanized, tank volume can be designed according to production requirements, easy operation, safety and health and smooth operation and other advantages, set high-speed shear, dispersion, homogenization, mixing in one.
Tank configuration is optional
The tank body of the square high-shear emulsion tank can be configured with aseptic air filter, thermometer (digital display or dial type), sight glass, sanitary manhole, liquid inlet and outlet hole, CIP universal rotary cleaning ball, aseptic sampling valve (stainless steel tank bottom), level meter and liquid level automatic control system (bearing module, contact-free ultrasonic, static pressure transformer), etc., or according to customer requirements.
Typical application
Suitable for food (milk) products, beverages, bioengineering, pharmaceutical, fine chemical,) pigments and other industries, the mixture and mixture in the tank for full and rapid mixing, dispersion, emulsification, homogenization.
Product features
The volume has a variety of specifications such as 600L~5000L, which can be designed and manufactured according to the actual needs of customers
The interface adopts quick-fitting chuck type (clamp), the inner liner of the tank is 304 or 316L, the inner surface is polished by mirror Ras0.28um ~ 0.6um, and the outer surface can be polished, brushed and sandblasted according to customer requirements.
The square high shear emulsifying tank adopts mechanical emulsification at the bottom and adopts claw type bite and double suction structure to avoid the dead Angle and vortex phenomenon caused by the upper material being difficult to inhale. High-speed stirring emulsification, can be suitable for different mixtures and mixtures of mixing, dispersion, emulsification, homogenization.
The seal of the emulsifying shaft adopts hygienic mechanical seal, and the emulsifying motor can adopt cycloidal pinwheel reducer and stepless speed reducer, which can be selected according to customer requirements and adopt frequency conversion speed regulation.
Technical parameter
