Scope of use:
1, can be used as liquid storage tank, mixing tank, temporary storage tank, disinfection tank, etc.
2, suitable for food, dairy products, juice drinks, medicine, chemical and biological engineering and other fields
Structural features:
1, the jacket three-layer stainless steel structure;
2. All materials are sanitary stainless steel;
3, the structure design is very humanized, strong operability;
4. The transition section of the inner wall of the cylinder adopts arc transition to ensure that the health level has no dead Angle;
Tank configuration:
1. Quick opening manhole
2. Various shapes of CIP cleaners
3. Fly-proof sanitary breathable cover
4. Adjustable triangle leg
5. Detachable feed tube kit
6, thermometer (optional)
7. Ladder (optional)
8. Liquid Level meter and liquid level control (optional)
9. Anti-vortex plate

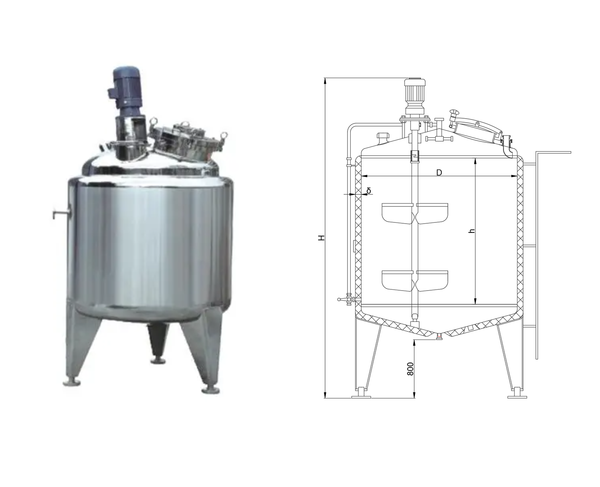

If there are special requirements can becustomized according to the requirements, the total height (H) is based on thedischarge port height of 800mm and obtained data, such as changing thedischarge port height, the total height (H) is adjusted accordingly.
