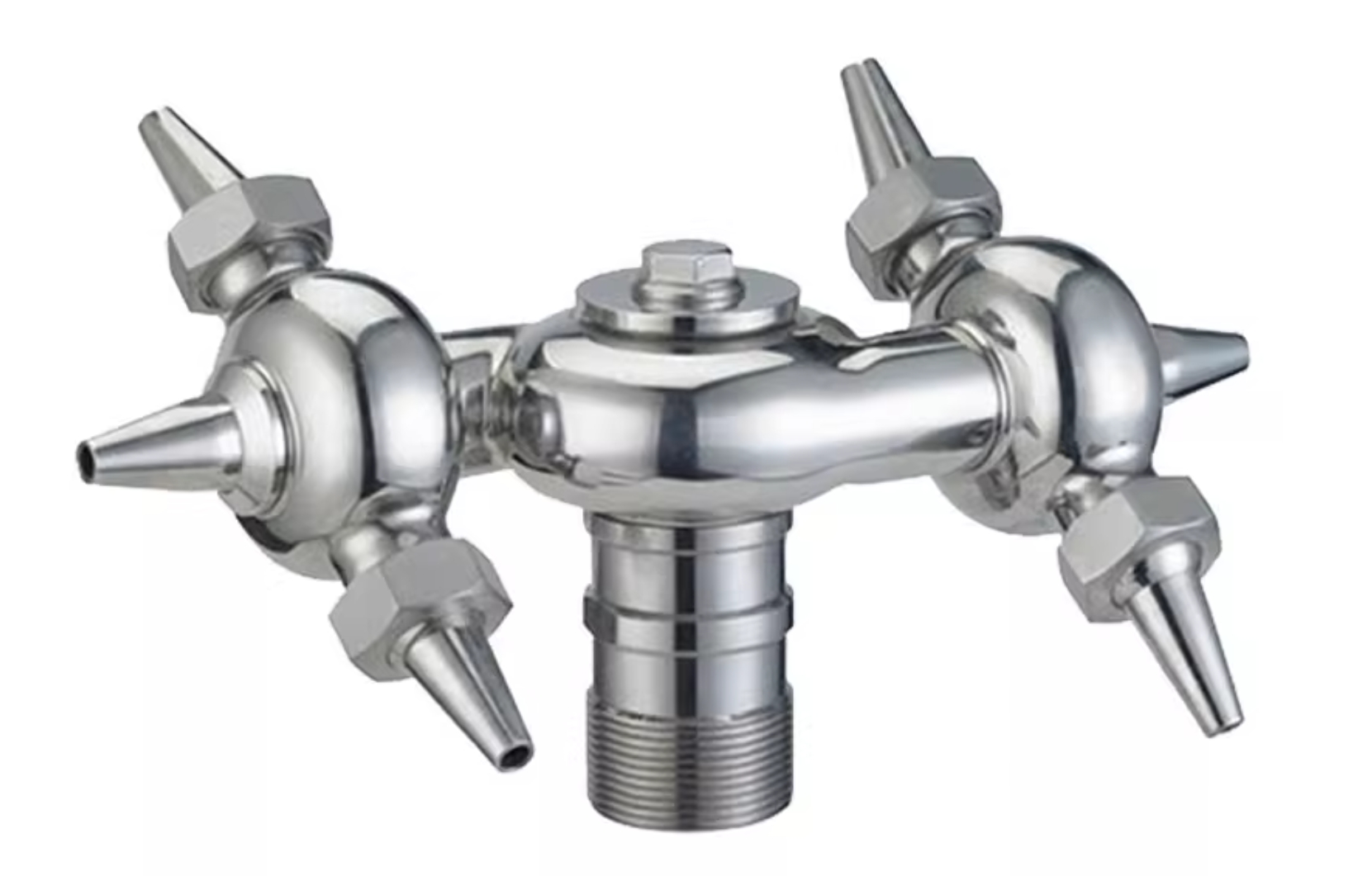

Product name: Horn can washer, universal washer

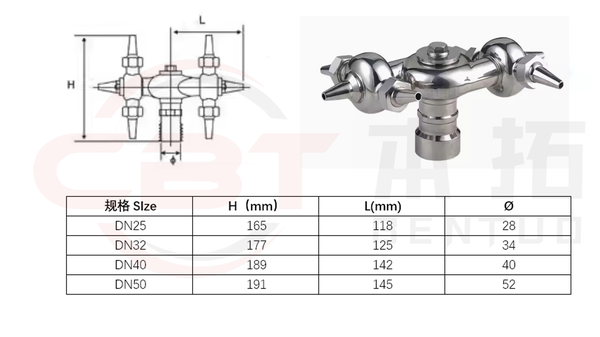

Specification :DN20-DN50
Interface: external thread, internal thread, quick fitting connector, loose connector
Material :SUS304 or SUS316
Working pressure :PN0.3-0.6Mpa
Operating temperature: less than or equal to 100 degrees
Flushing radius: greater than or equal to 2.5 meters
Applicable tank diameter :1.5M-3M3M-8M
Working pressure :0.2-0.4MPa0.5-1.0MPa
Working flow :5-10M3/H10-15M3/H
Operating temperature: less than 100 degrees
Pump with full flow :35-50T/h head :50-60m
How it works:
When the product works, the reaction force generated by the washing liquid is used to promote the automatic operation of the can washer. The working principle is that the torque generated by a horizontal auxiliary nozzle drives all the sprinklers to rotate around the vertical axis, and at the same time, the torque generated by two symmetrical auxiliary sprinklers on the nozzle base drives the sprinkler base to rotate around the horizontal axis, so that the liquid column emitted by the main nozzle rotates around the vertical axis and the horizontal axis, so that the can washing machine is 360 degrees spray without dead Angle
