Detail
Standard: National standard IS0, German standard DIN
Filter material: SUS304, SUS316L

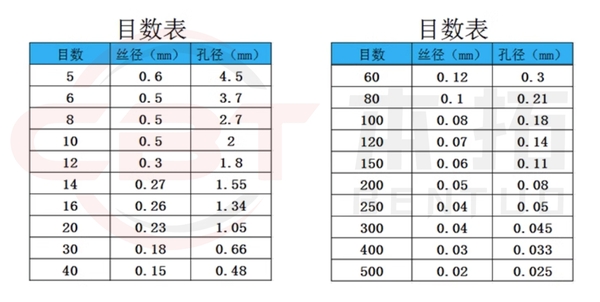

Filter mesh number: 5-1000 mesh (304.316L) Stainless steel punching mesh filter element 1mm-10mm metal mesh filter element: 20-1200 mesh optional
Connection mode: quick-mount, threaded, flanged, welded.
Installation method: Bottom in edge out
Surface treatment: internal and external mirror polishing or matte finish
Application: food, industry, chemical industry, medicine, involving wine, beverage, mineral water, biological engineering and so on.
Filter sealing material, according to the medium optional: silicone, EPDM, fluorine rubber, PTFE.

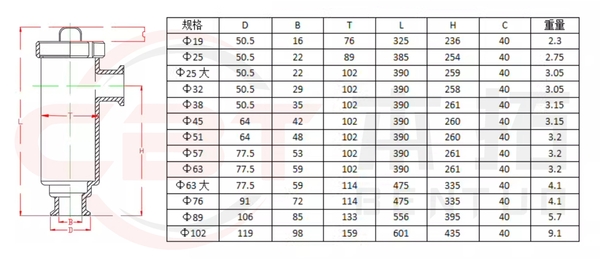

Technical parameters:
