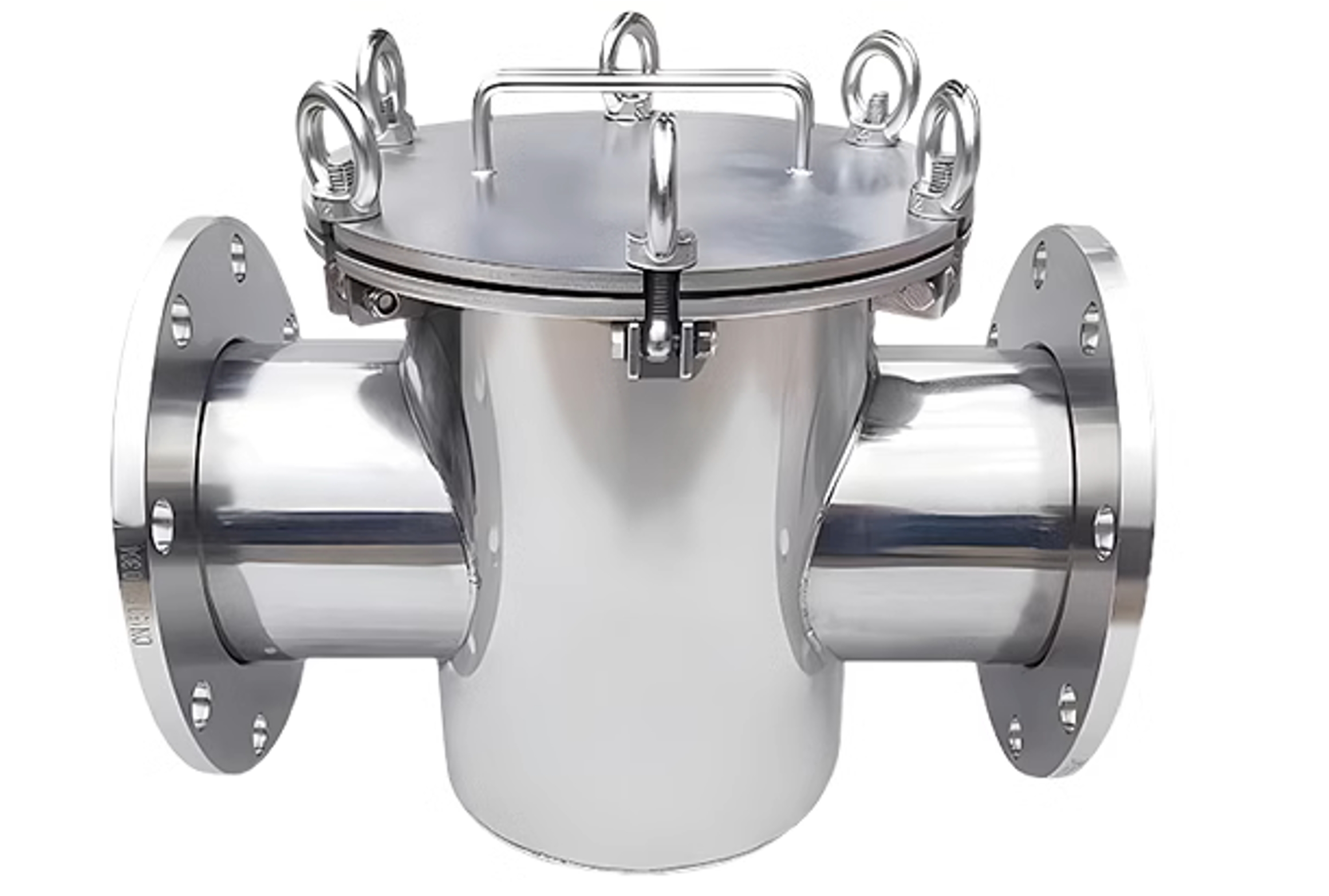

Product name: Stainless steel magnetic filter
Case material :304 stainless steel (316 can be customized)
Magnetic material: Ndfeb strong magnetic bar
Product Specifications: Multiple specifications (customizable)
Product process :(mirror/rough polishing), pickling product process: polishing, frosting, painting, drawing, blank parts, etc
Product Introduction:
Strong magnetic iron remover, also known as magnetic filter, is composed of a number of permanent magnet materials through a special magnetic circuit design
of strong magnetic magnetic rod combination, in the process of liquid slurry transport, 0.5~60 microns in the slurry containing iron pollutants (such as iron filings, rust)
and other small ferromagnetic impurity particles are absorbed on the magnetic rod, thoroughly remove the iron impurities in the slurry, in order to purify the material, Ensure product quality,
safety and efficient operation of downstream equipment. Strong magnetic iron remover is widely used in food, metal processing, pharmaceutical, chemical, mining, ceramics, paper
and other industries,
to solve the problems encountered in production for customers.
Product features:
1. The magnetic field strength is up to 12000GS, the service life is more than 10 years, 8000.10000.12000GS is optional;
2. Optimized magnetic circuit design, high gradient magnetic field multiple filtration to ensure full contact between liquid flow and magnetic rod, good iron removal effect;
3. The strong magnetic iron removal filter has no energy consumption, no consumables and moving parts, fast installation and easy cleaning;
4. The shell material is 304 or 316L stainless steel, and the polishing can meet the requirements of food and pharmaceutical hygiene level:
5. Design temperature :200'℃;
6. Design pressure :0.6, 1.0, 1.2Mpa.

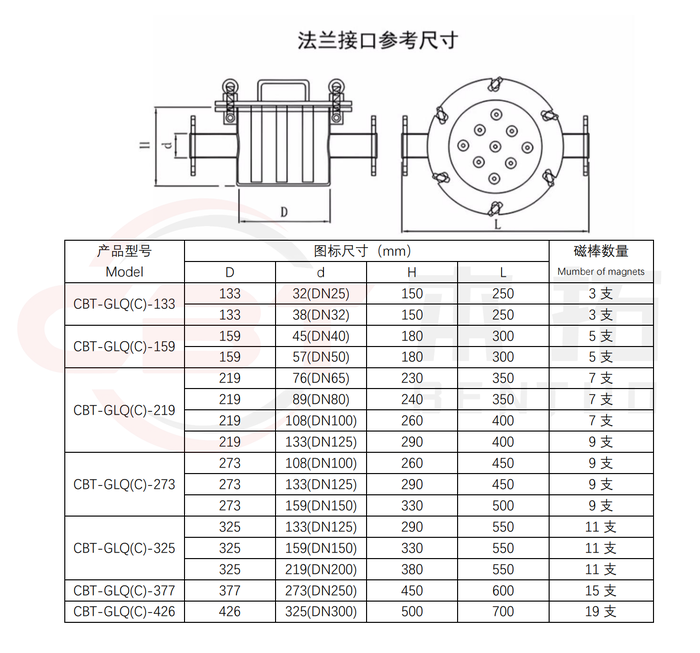

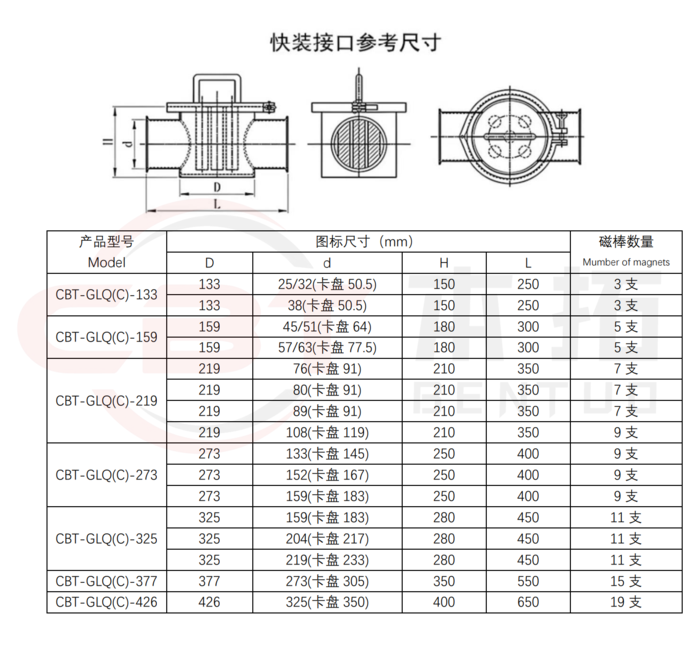

Product technical parameters:
