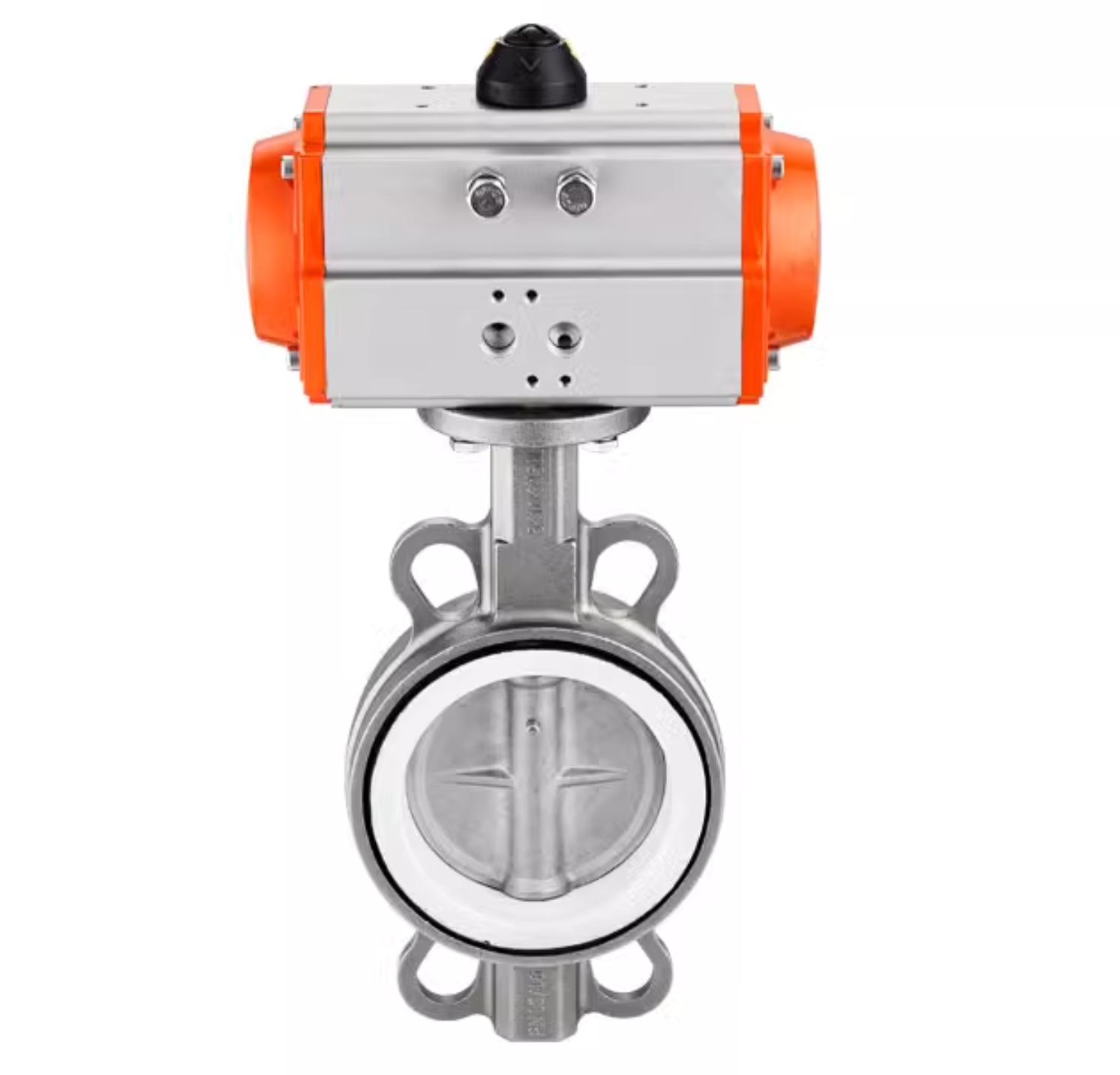

AT pneumatic butterfly valve

Name: Pneumatic stainless steel PTFE butterfly valve name

Valve plate material :304 stainless steel

Nominal pressure :1.6Mpa

Applicable temperature :-20°C-100°C

Body material :304 stainless steel

Pneumatic actuator :AT

Sealing form: polytetrafluoroethylene seal ring

Product features:

It has the advantages of simple structure, small flow resistance coefficient, linear flow characteristics, no retention of debris, light weight and easy installation. The selection of different materials of parts, with different materials of sealing rings, can adapt to different media, working conditions, so that the cost and performance to achieve the effect.
