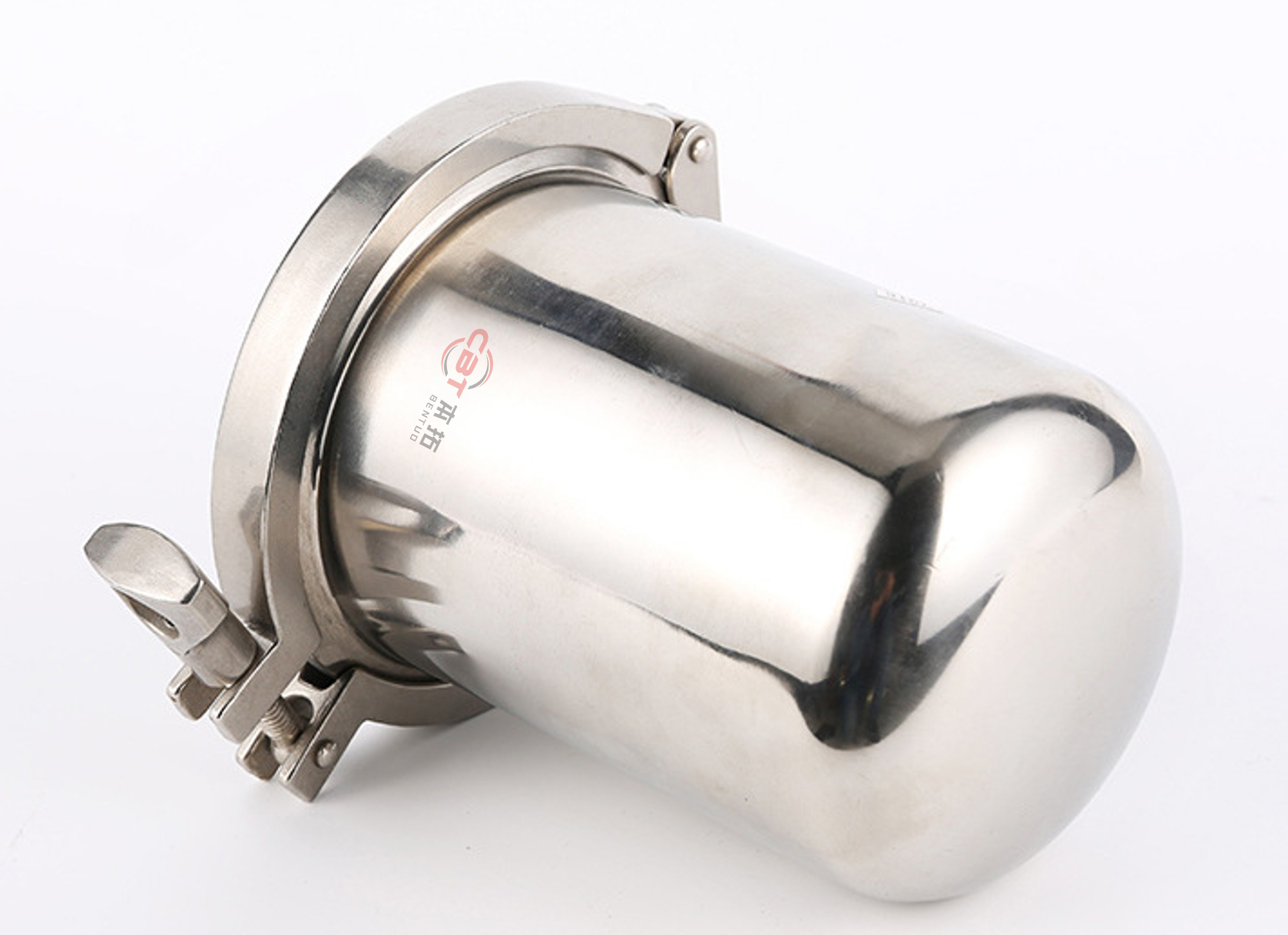

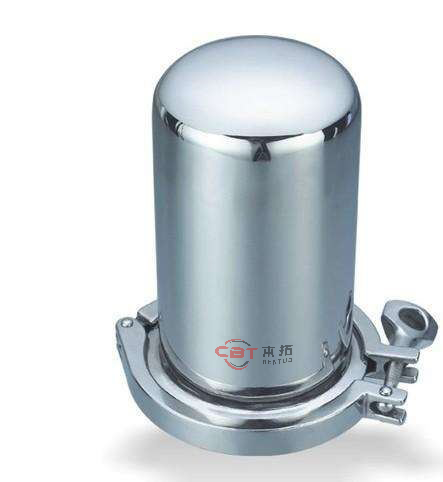

Product Introduction:
Stainless steel respirator is specially designed and manufactured for the purpose of gas exchange in the storage tank of the pharmaceutical industry and the food industry, and the gas filtration is 0.02um particles with an efficiency of 99.99%. Filtration capacity can be selected in the range of 1-100m/min. The aperture is uniform and stable, the gas resistance and regeneration are convenient. The filter element can be used once or twice under normal circumstances, and can be extended after regeneration.
Performance characteristics:
1. Designed and manufactured in accordance with GMP requirements, with reasonable structure and excellent production;
2. The inner and outer surfaces are polished by mirror to meet GMP requirements;
3. The application of reasonable fluid mechanics principle, low resistance, fast flow rate;
4. Disassembly and installation structure make operation easier;
5. Specifications can be customized for design;
6. The filter height is from 0.1-60um, and the filter bore is uniform.
Technical parameters:
Filter area :0.5(m2)...
Specifications: φ32,38,Φ51 (conventional)
Material SUS304,SUS316,SUS316L
Filtration (um) : 0.22-100
Filter capacity (t/h) : 0.2
Filter length (m/m) : 2.5 inches,5 inches,10 inches
Working pressure (Mpa) : 0.1-0.6~~
Temperature range (℃) : 1-60
Filter material: polypropylene filter polytetrafluoroethylene

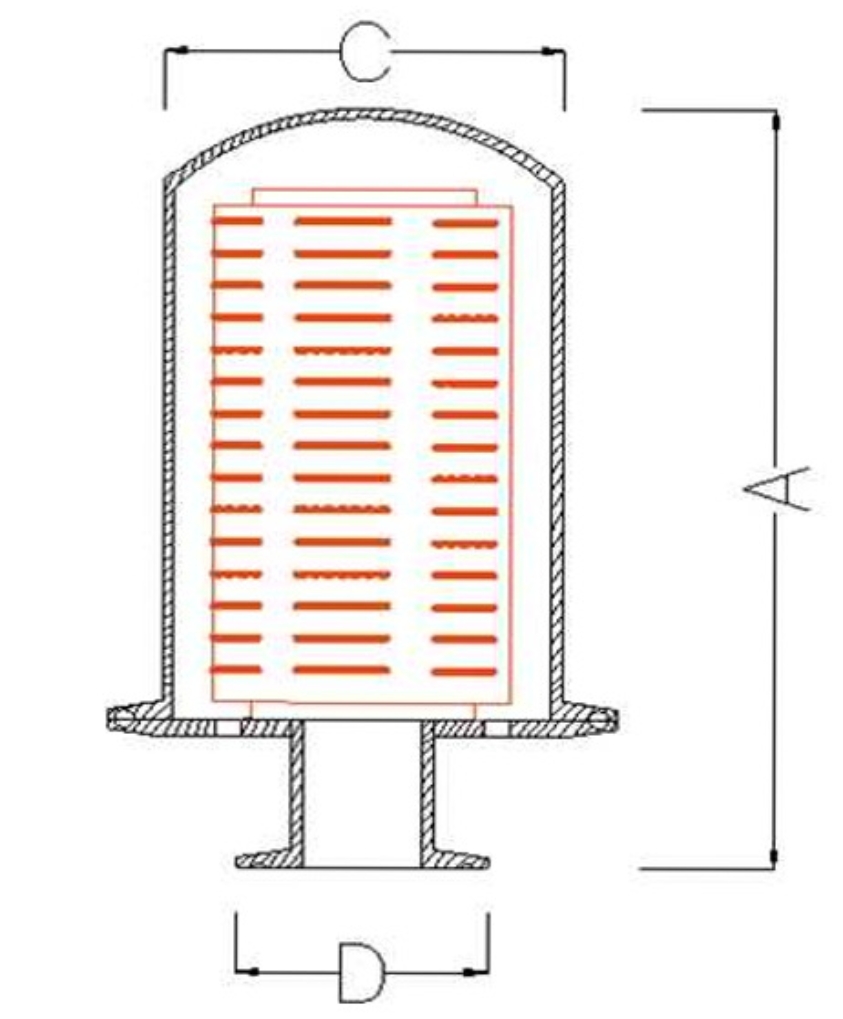

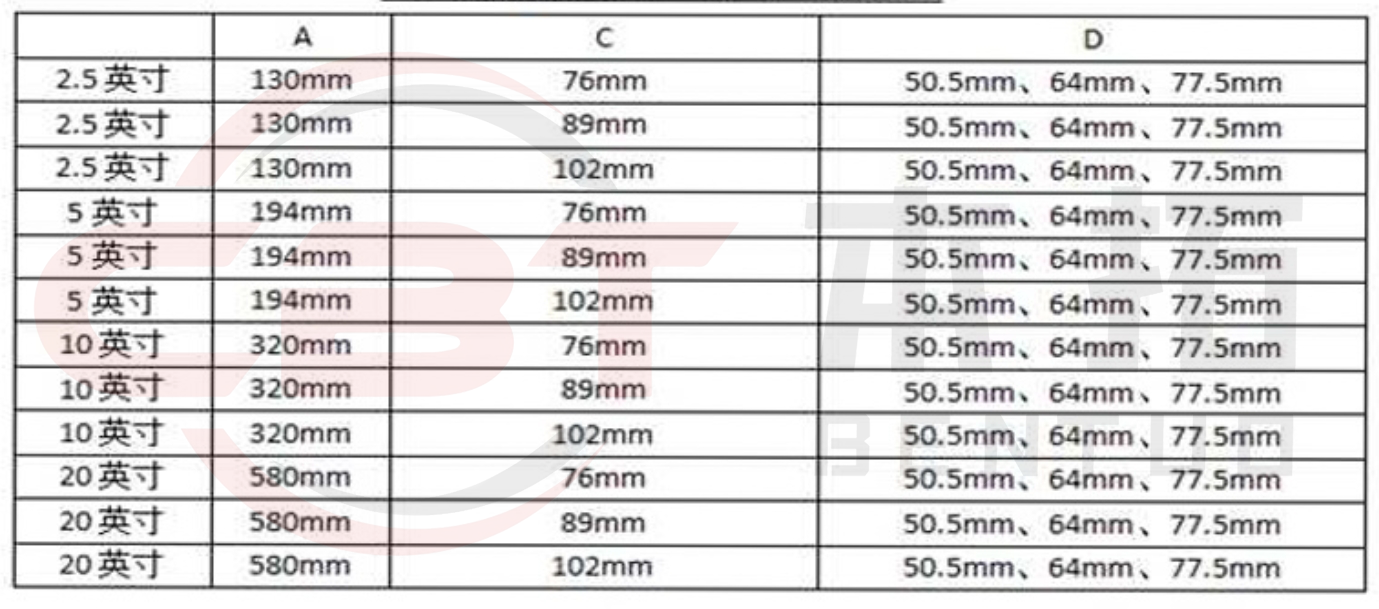

Size specification:
Industry application:
Widely used in pharmaceutical, dairy, food, wine, beverage, fine chemical and other clean pipeline system
